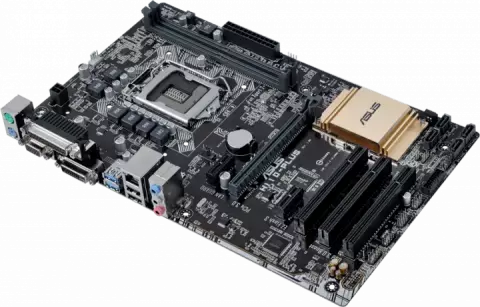

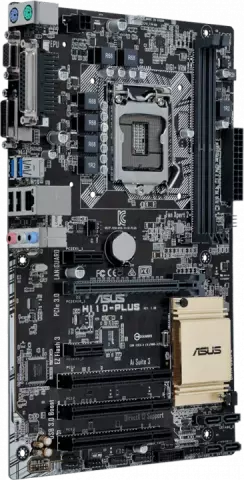

مادربرد Asus DDR4 مدل H110-PLUS

LGA1151

Intel H110

Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

2400/2133 MHz

Dual channel memory architecture

DVI-D/RGB

Supports DVI-D with max. resolution 1920 x 1200 60 Hz Supports RGB with max. resolution 1920 x 1200 60 Hz Supports Intel InTru 3D

Quick Sync Video

Clear Video HD Technology

Insider

Realtek RTL8111H

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC

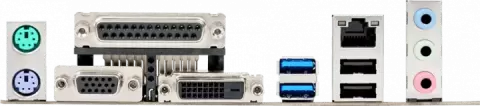

1 x DVI-D

ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)

ASUS 5X Protection II : ASUS LANGuard - 2.5X higher surge tolerance ASUS Overvoltage Protection - World-class circuit-protecting power design ASUS DIGI+ VRM - 5 Phase digital power design ASUS DRAM Overcurrent Protection - Prevents damage from short circuits ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS EPU : EPU ASUS Exclusive Features : AI Suite 3 Ai Charger Anti-Surge USB 3.0 Boost Disk Unlocker Mobo Connect PC Cleaner ASUS Quiet Thermal Solution : Stylish Fanless Design Heat-sink solution ASUS Fan Xpert 2+ ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode Push Notice ASUS Q-Design : ASUS Q-Slot Media Streamer
