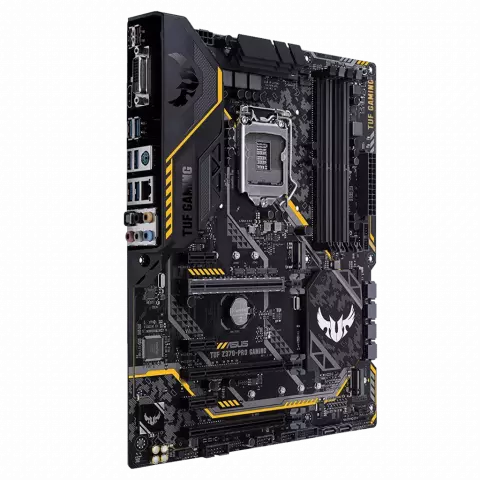

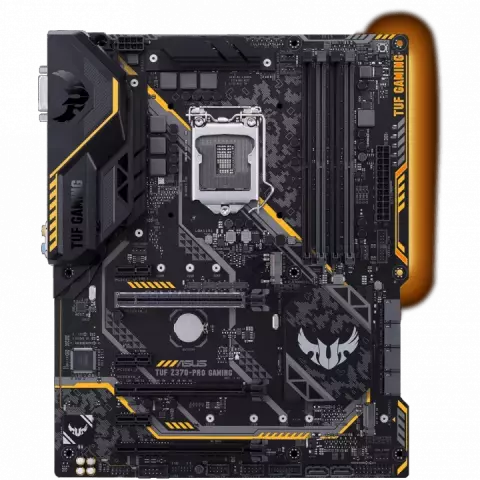

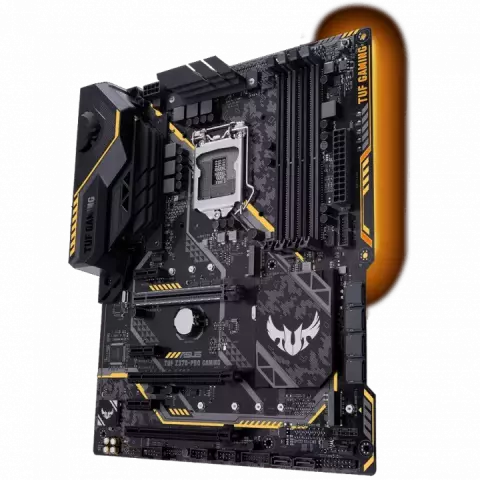

مادربرد Asus DDR4 مدل GAMING TUF Z370-PRO

LGA1151

Intel Z370

8th Generation Core Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI / DVI-D

HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Supports NVIDIA 2-Way SLI Technology

Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

0

1

5

10

Intel I219V

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC

2 x PCIe 3.0/2.0 x16 (x16

x8/x8

x8/x4+x4

x8+x4+x4/x0) 1 x PCIe 3.0/2.0 x16 (max at x2 mode)

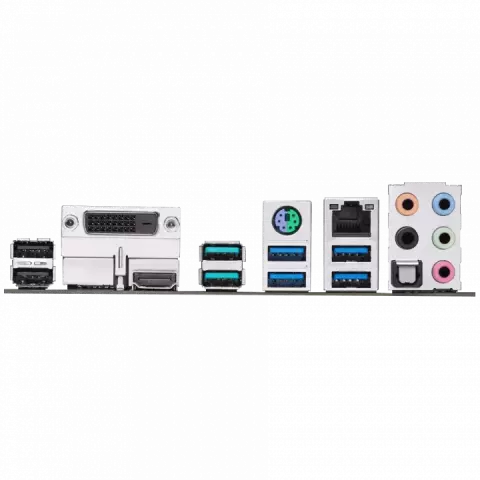

1 x DVI-D

ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt) 1 x MemOK! button(s) 1 x CPU OV 1 x Clear CMOS jumper(s)

Performance & Power Saving Utility: Autoing Tuning with OC Tuner ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI + VRM: 4+2+1 Phase digital power design ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger File Transfer - Cloud GO! - File Transfer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode CPU Installation Tool - Three-step simplicity and safety ASUS Q-Design : - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
