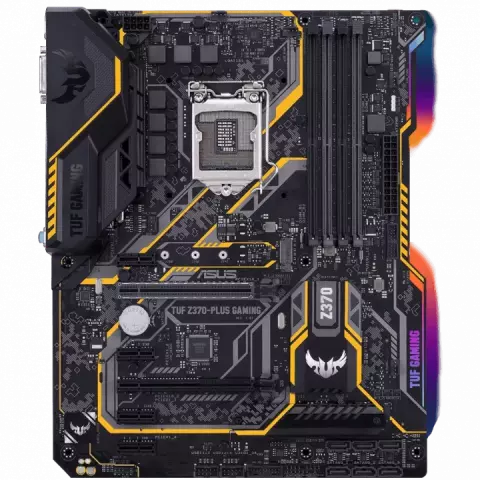

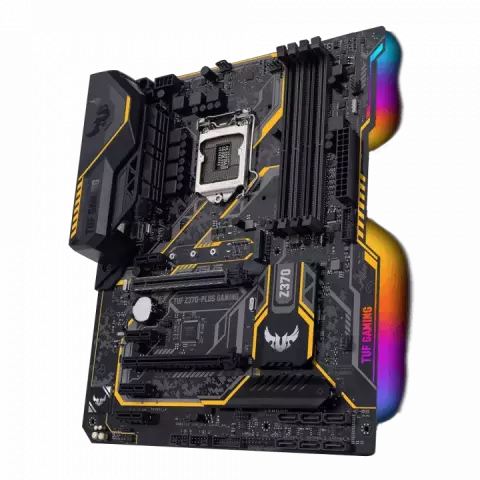

مادربرد Asus مدل GAMING TUF Z370-PLUS

LGA1151 v2

Intel Z370

8th Generation Core Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI / DVI-D

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD CrossFireX Technology

2 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

Raid 0

1

5

10

Intel I219V

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC

1 x PCIe 3.0/2.0 x16 (x16

x8/x4+x4)

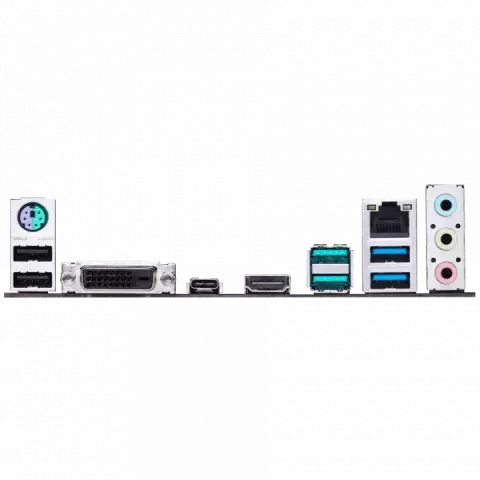

1 x DVI-D

ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x RGB Header(s) 2 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x W_Pump+ Header 1 x AIO PUMP Header

ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS EPU : - EPU TUF ENGINE! Power Design : - TUF Components (Choke

Cap. & MOSFET; certified by military-standard) AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
