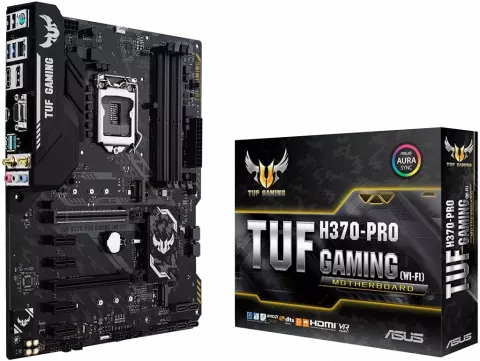

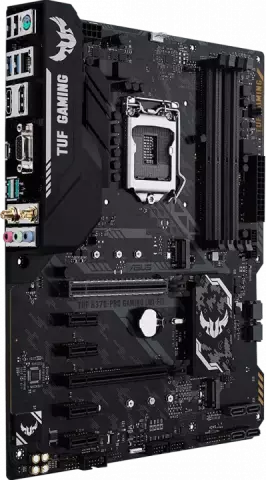

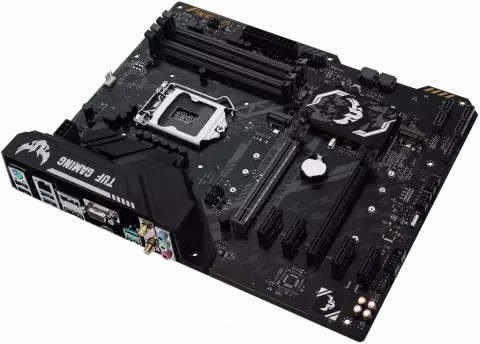

مادربرد ASUS مدل GAMING TUF H370-PRO WI-FI

LGA1151 v2

Intel H370

8th Generation Core Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

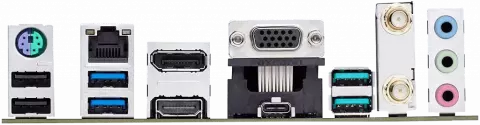

HDMI/DisplayPort/D-Sub

HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz D-sub with max. resolution 1920 x 1200 @ 60 Hz DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

0

1

5

10

Intel I219V

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC

ATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

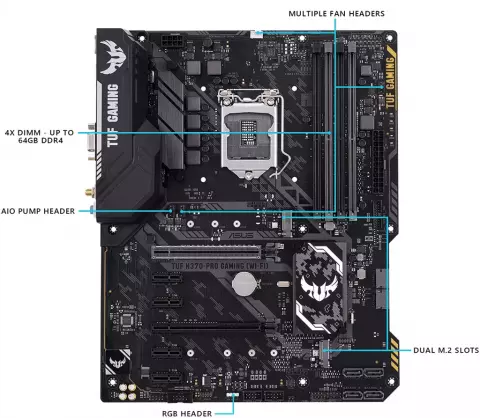

1 x Aura RGB Strip Header 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s)

ASUS TUF PROTECTION ASUS EPU TUF ENGINE! Power Design AURA ASUS Exclusive Features ASUS Quiet Thermal Solution ASUS EZ DIY CPU Installation Tool ASUS Q-Design
