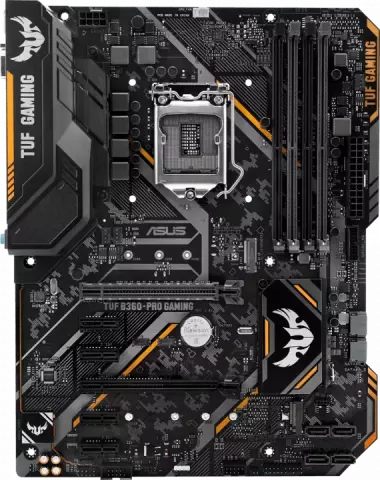

مادربرد ASUS مدل GAMING TUF B360-PRO

مبتنی بر Intel

LGA1151 v2

Intel B360

نسل هشتم و نهم Intel

سری Core، سری Pentium Gold، سری Celeron، نسل هشتم Intel، نسل نهم Intel

DDR4

2666/2400/2133

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI/D-Sub ports

Supports HDMI 1.4b with max. resolution 4096 x 2160 24 Hz / 2560 x 1600 60 Hz Supports D-sub with max. resolution 1920 x 1200 60 Hz

Supports AMD 2-Way CrossFireX Technology

1x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)

1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Intel I219V

1 x Gigabit LAN Controller(s) ASUS Turbo LAN Utility TUF LANGuard

Realtek ALC887 8-Channel High Definition Audio CODEC

ATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x Aura RGB Strip Header 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s)

ASUS TUF PROTECTION ASUS EPU AURA ASUS Exclusive Features ASUS Quiet Thermal Solution ASUS EZ DIY CPU Installation Tool ASUS Q-Design
