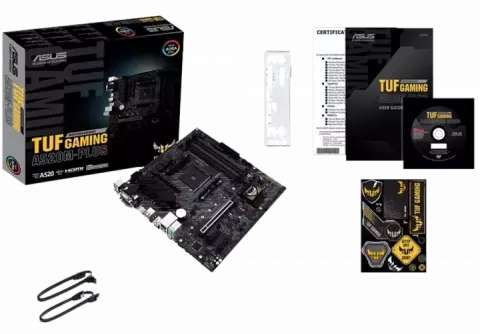

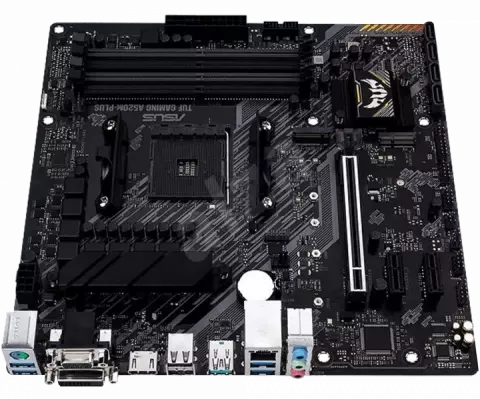

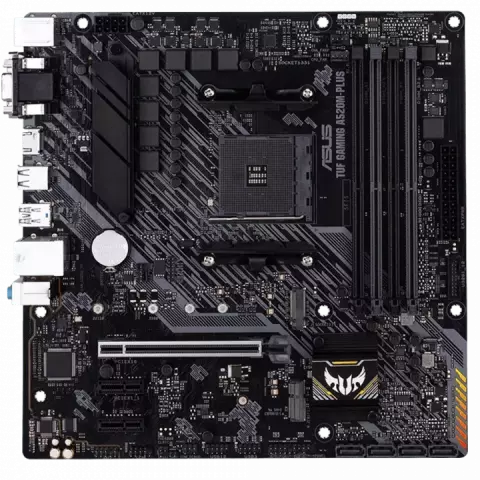

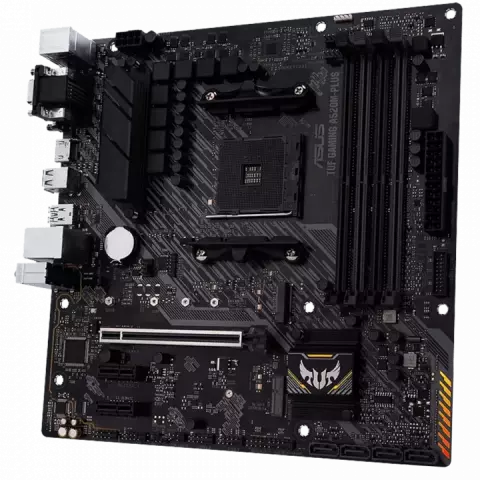

مادربرد ASUS مدل GAMING TUF A520M-PLUS

مبتنی بر AMD

AM4

AMD A520

سری Ryzen

سری 5000، سری 5000 G، سری 4000 G، سری 3000 AMD

DDR4

128GB

DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133

دو کاناله

ECC Memory (ECC mode) support varies by CPU

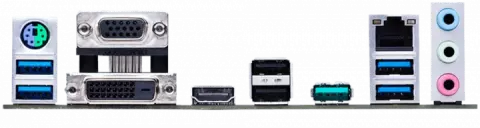

D-Sub / DVI-D / HDMI

1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

RAID 0, 1, 10

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

7.1 کانال

Realtek L8200A 1Gb Ethernet

1xDVI-D

1 × USB 3.2 Gen2

4 × USB 3.2 Gen1

2 × USB 2.0

mATX

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)

1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Aura RGB Strip Header 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
