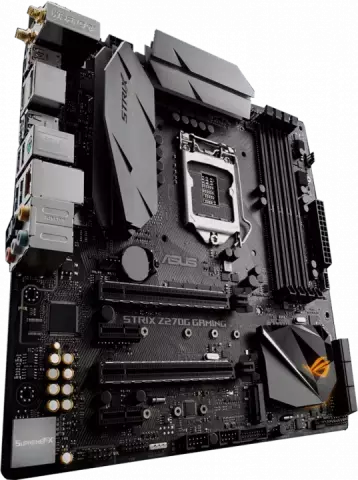

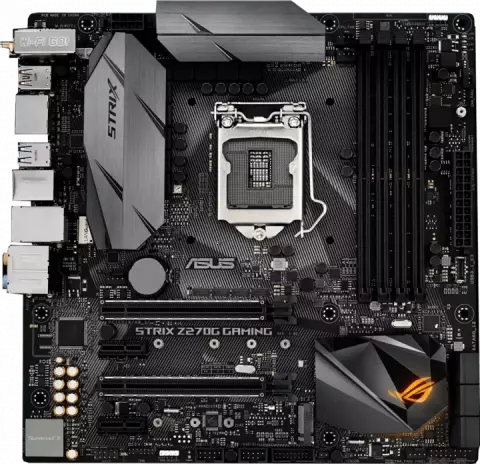

مادربرد Asus DDR4 مدل GAMING STRIX Z270G

LGA1151

Intel Z270

7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU

DDR4

DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

Non-ECC

Un-buffered

Register Memory Dual Channel Memory Architecture

HDMI / DisplayPort 1.2 ports

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Raid 0

1

5

10

Intel® I219V

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

2 x USB 3.1 Type-A + Type-C

mATX

Intel® Z270 Chipset : 6 x USB 3.0 port(s) (4 at back panel

blue

2 at mid-board) Intel® Z270 Chipset : 6 x USB 2.0 port(s) (2 at back panel

black

4 at mid-board) ASMedia® USB 3.1 controller : 1 x USB 3.1 front panel connector port(s) ASMedia® USB 3.1 c

1 x AAFP connector 2 x Aura RGB Strip Headers 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA

5-Way Optimization by Dual Intelligent Processors 5 Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ Power Control

Fan Xpert 4

and Turbo App together

providing better CPU performance

e
