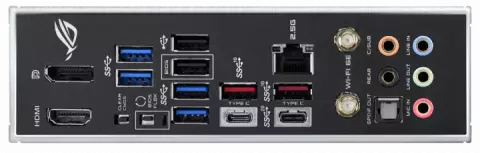

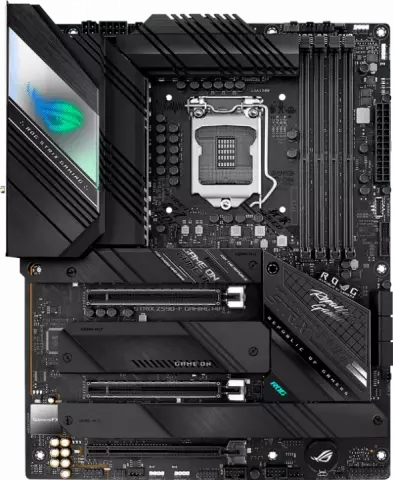

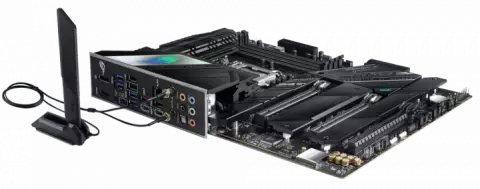

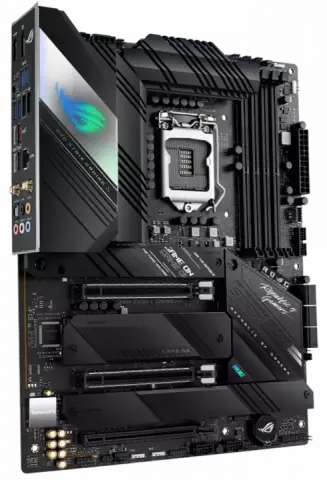

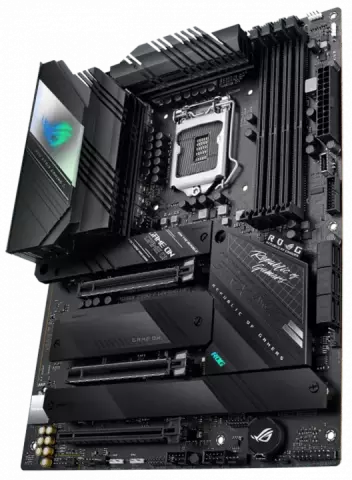

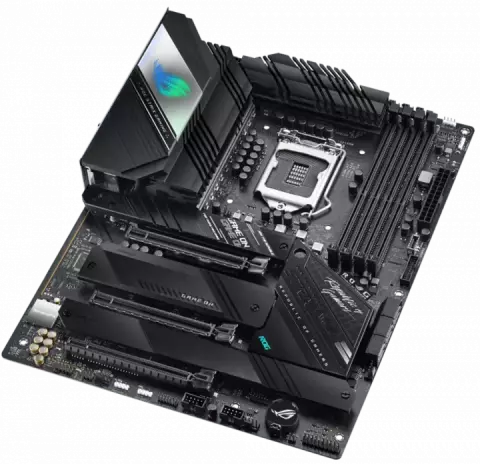

مادربرد Asus مدل GAMING ROG STRIX Z590-F Wi-Fi

مبتنی بر Intel

LGA1200

Intel Z590

نسل دهم و یازدهم Intel

سری Core، نسل یازدهم Intel سری Core، سری Pentium Gold، سری Celeron، نسل دهم Intel

DDR4

5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz

دو کاناله

قابلیت OptiMem II

DisplayPort/HDMI

M.2_1 slot (Key M), type 2242/2260/2280/22110

Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

M.2_2 slot (Key M), type 2242/2260/2280/22110

Intel 11th processors support PCIe 4.0 x4 mode

Intel 10th processors support PCIe 3.0 x4 mode

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

2 x PCIe 4.0/3.0 x16

SupremeFX Shielding Technology

Intel Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

v5.2

2 × USB 2.0

4 × USB 3.2 Gen1

2 × USB 3.2 Gen2

2 × USB Type-C

دکمه BIOS FlashBack

ATX

1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x VRM heatsink Fan header 1 x W_PUMP+ header 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports
