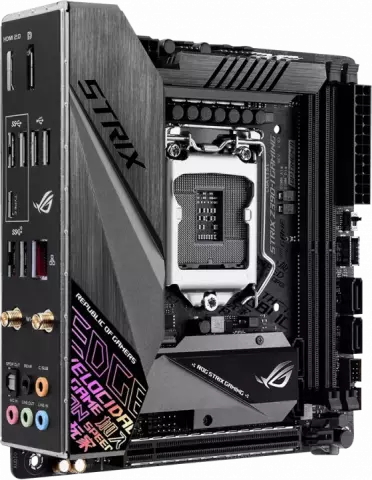

مادربرد ASUS مدل GAMING ROG STRIX Z390-I

LGA1151 v2

Intel Z390

Intel Socket 1151 for Intel Core 9000 series

8th Generation Core i7/i5/i3

Pentium and Celeron processors

DDR4

DDR4 4500+(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 Hyper DIMM support is subject to the physical characteristics of individual CPUs

دو کاناله

non-ECC

un-buffered memory

DisplayPort / HDMI

Supports HDMI 2.0 with max. resolution 4096 x 2160 @ / 60 Hz Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

2 x M.2 Socket 3 with M Key, type 2242/2260/2280 (Support PCIe 3.0 x4 and SATA modes)

When the M.2_1 Socket is operating in SATA mode, SATA port 2 will be disabled

RAID 0, 1, 5, 10

ROG SupremeFX High Definition Audio CODEC S1220A

8 کانال

Intel I219V

Anti-surge LANGuard

ROG GameFirst Technology

Intel Wireless-AC 9560

Wi-Fi 802.11 a/b/g/n/ac

Supports dual band frequency 2.4/5 GHz

Supports MU-MIMO

v5.0

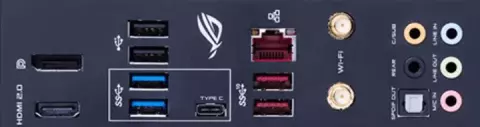

2 × USB 3.1 Gen2

2 × USB 3.1 Gen1

2 × USB 2.0

1 × USB Type-C

Mini ITX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)1 x USB 3.1 Gen 2 front panel connector

1 x Aura Addressable Strip Header(s) 1 x AAFP connector 1 x Aura RGB Strip Header(s)2 x M.2 Socket 3 with M Key design

type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Internal speaker connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)
