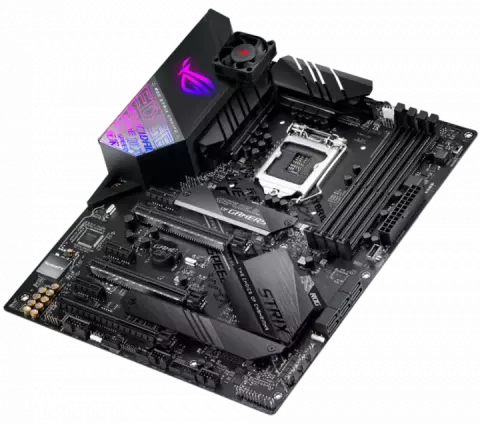

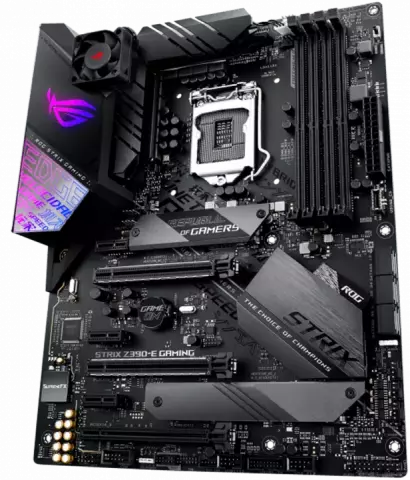

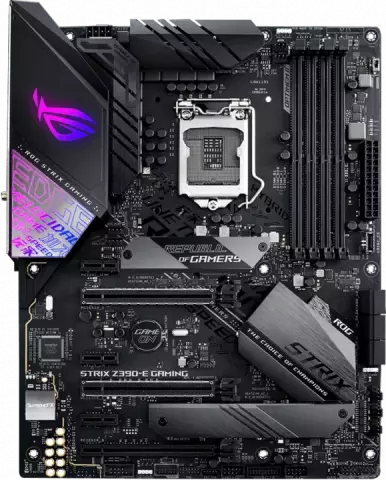

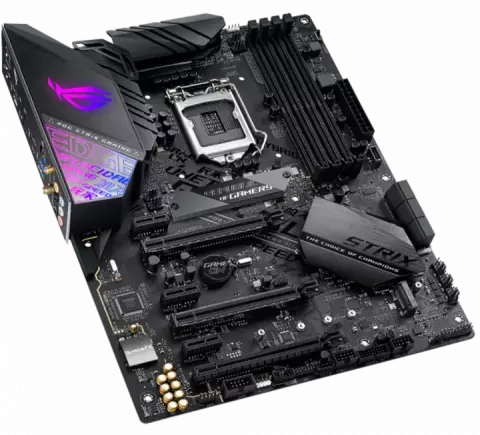

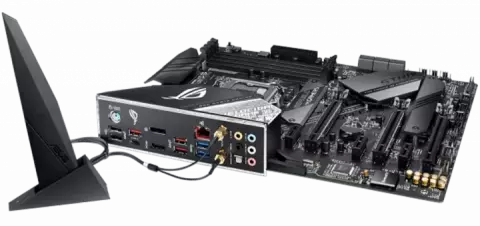

مادربرد ASUS مدل GAMING ROG STRIX Z390-E

مبتنی بر Intel

LGA1151

Intel Z390

نسل هشتم و نهم Intel

سری Core، سری Pentium Gold، سری Celeron، نسل هشتم Intel، نسل نهم Intel

DDR4

4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz

دو کاناله

OptiMem II

non-ECC un-buffered memory

HDMI DisplayPort

رزولوشن HDMI : 4096x2160 با فرکانس 30 هرتز

رزولوشن DisplayPort : 4096x2304 با فرکانس 60 هرتز

NVIDIA 2-Way SLI Technology

AMD 3-Way CrossFireX Technology

1x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

RAID 0, 1, 5, 10

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

8 کانال

Intel I219V

Anti-surge LANGuard

ROG GameFirst Technology

Intel Wireless-AC 9560

Wi-Fi 802.11 a/b/g/n/ac

Supports dual band frequency 2.4/5 GHz

Supports MU-MIMO

v5.0

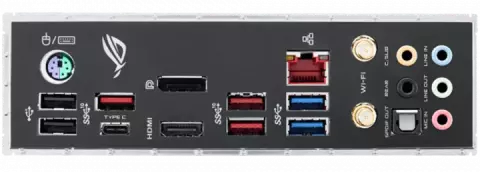

3 × USB 3.1 Gen2

USB 3.1 Gen 2 Type-C x 1

2 × USB 3.1 Gen1

2 × USB 2.0

ATX

1x USB 3.1 Gen 2 front panel connector 1x USB 3.1 Gen 1(up to 5Gbps) connector supports additional 2 USB 3.1 Gen 1 ports 2x USB 2.0 connectors support additional 4 USB 2.0 ports

1x COM port header 2x Aura RGB Strip Headers 1x M.2_FAN connector 1x CPU Fan connector 2x Chassis Fan connectors 1x 8-pin ATX 12V Power connector 1x Thermal sensor connector 1x Clear CMOS jumper 1x COM port header 1x AIO PUMP Header

ROG Exclusive Software OC Design - ASUS PRO Clock Technology AI Overclocking ASUS Optimem II 5-Way Optimization by Dual Intelligent Processors 5 AURA ASUS Exclusive Features ASUS EZ DIY ASUS Q-Design Gaming Aesthetics Digi+VRM DIY Friendly Design
