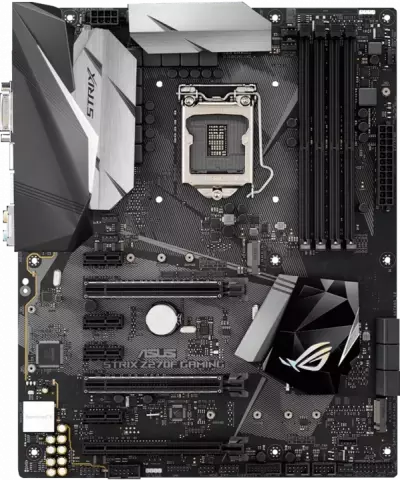

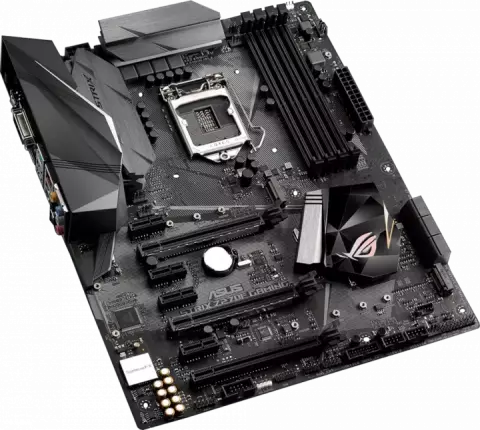

مادربرد Asus DDR4 مدل GAMING ROG STRIX Z270F

LGA1151

Intel Z270

Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0

DDR4

3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

HDMI / DVI-D/ DisplayPort 1.2 ports

Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD 3-Way CrossFireX™ Technology

Intel® Z270 Chipset : 1 x M.2 Socket 3

with M Key

type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2 1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (x4 PCIE mode)

Support Raid 0

1

5

10

Intel I219V Anti-surge LANGuard-ROG GameFirst Technology

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode)

1

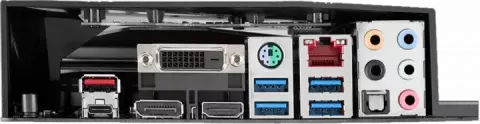

2 x USB 3.1 Gen 2 Type-A + USB Type-CTM 4 x USB 3.1 Gen 1 (blue)

ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

1 x AAFP connector 2 x RGB Header(s) 1 x M.2 Socket 3 with M Key design

type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (PCIE mode only) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x ROG extension (ROG_EXT) header(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x High AMP Fan Header 1 x T_Sensor Connector 1 x AIO PUMP Header 3 x 3D Mount screw port(s)

OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ Power Control

Fan Xpert 4

and Turbo App together

providing better CPU performance

efficient power saving

precise digital power control

whole system cooling and even tailor your own app usages. TPU - Auto Tuning

TurboV

GPU Boost - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors Gamer's Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ESD Guards - PC Cleaner ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting Turbo APP M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
