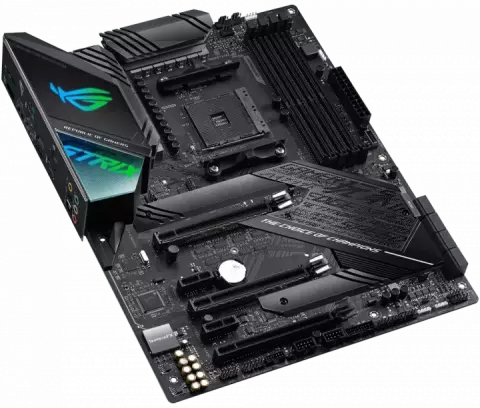

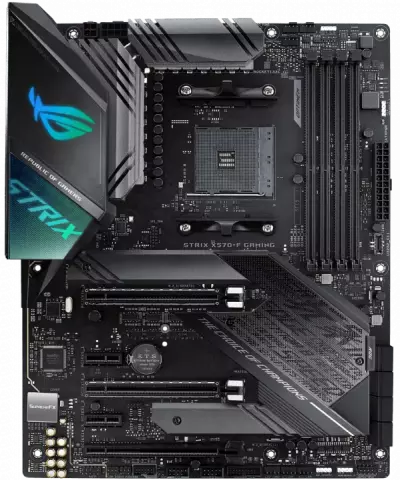

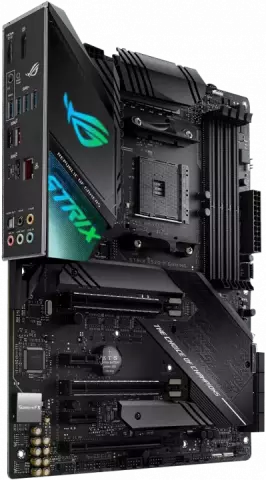

مادربرد ASUS مدل GAMING ROG STRIX X570-F

مبتنی بر AMD

AM4

AMD X570

سری Ryzen

AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

DDR4

3rd Gen AMD Ryzen Processors 4 x DIMM

Max. 128GB

DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz 2nd Gen AMD Ryzen Processors 4 x DIMM

Max. 128GB

DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 4 x DIMM

Max. 128GB

DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133

دو کاناله

Un-buffered Memory Dual Channel Memory Architecture

HDMI/DisplayPort ports

رزولوشن HDMI : 4096x2160 با فرکانس 60 هرتز رزولوشن DisplayPort : 4096x2160 با فرکانس 60 هرتز

3rd and 2nd Gen AMD Ryzen Processors Supports NVIDIA 2-Way SLI Technology

3rd and 2nd Gen AMD Ryzen Processors Supports AMD 3-Way CrossFireX Technology 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Supports AMD 2-Way CrossFireX Technology

AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors :

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

AMD X570 chipset :

1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

RAID 0, 1, 10

SupremeFX8-Channel High Definition Audio CODEC S1220A

- Dual OP Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- SupremeFX Shielding Technology

8 کانال

Intel I211-AT, 1 x Gigabit LAN Controller(s)

Anti-surge LANGuard

ROG GameFirst Technology

4 × USB 3.2 Gen1

3 × USB 3.2 Gen2

USB Type-C 3.2 Gen 2 x 1

ATX

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

5-Way Optimization by Dual Intelligent Processors 5 Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Xpert 4

and Turbo App together

providing betterCPU performance

efficient power saving

precise digital power control

whole system cooling and even tailor your own app usages. TPU Auto Tuning

TurboV

GPU Boost Gamer's Guardian: DRAM Overcurrent Protection Stainless Steel Back I/O Highly Durable Components DIGI+ VRM SafeSlot ESD Guards on LAN

Audio

and USB ports ASUS EPU : EPU AURA : Aura Lighting Control Addressable Gen 2 Header ASUS Exclusive Features : USB BIOS Flashback AI Suite 3 Ai Charger ASUS NODE : hardware control interface BIOS Flashback® Button ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS Q-Design : ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM Gaming Aesthetics : AURA-RGB Lighting
