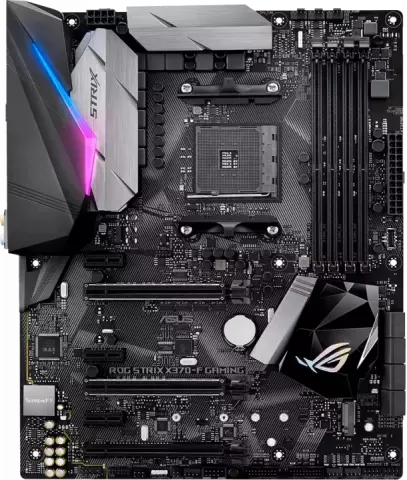

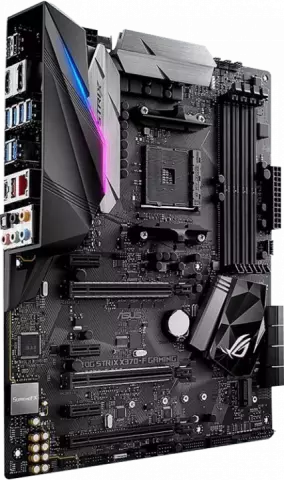

مادربرد ASUS مدل GAMING ROG STRIX X370-F

AM4

AMD X370

AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors Supports AM4 Socket 14 nm CPU Supports CPU up to 8 cores

DDR4

AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors 4 x DIMM

Max. 64GB

DDR4 3200(O.C.)/2666/2400/2133 MHz ECC and non-ECC

Un-buffered Memory AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors 4 x DIMM

Max. 64GB

DDR4 2400/2133 MHz Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

DisplayPort/HDMI

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

Supports NVIDIA 2-Way SLI Technology

Supports AMD 3-Way CrossFireX Technology

AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-series/Athlon Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (SATA mode)

Raid 0

1

10

Intel I211-AT

1 x Gigabit LAN Controller(s) Anti-surge LANGuard

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

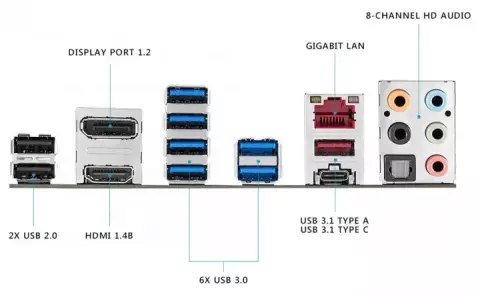

6 × USB 3.1 Gen1

2 × USB 2.0

1 × USB Type-C Gen2

1 × USB 3.1 Gen2

ATX

2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x USB 3.1 Gen 2 front panel connector

1 x M.2 Socket 3 with M key

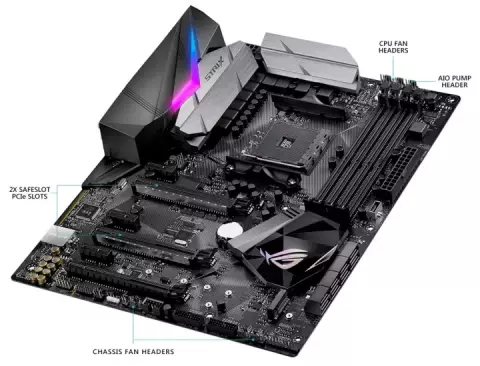

type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 2 x RGB Header(s)
