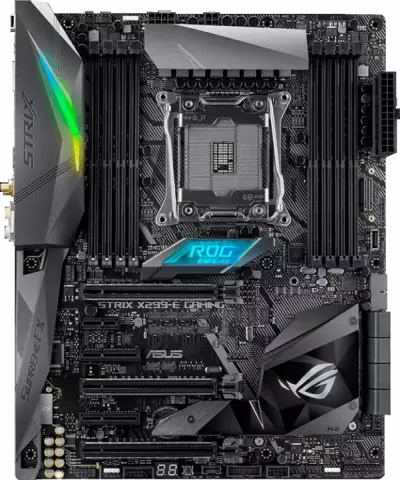

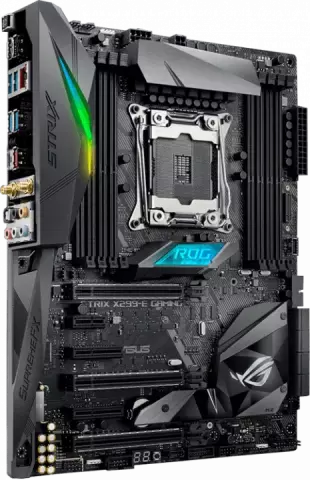

مادربرد Asus DDR4 مدل GAMING ROG STRIX X299-E

LGA2066

Intel X299

X-Series

DDR4

Intel Core X-series Processors (6-core above) : 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz Intel Core X-series Processors (4-core) : 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Intel Core X-series Processors (6-core above) : 8 x DIMM

Max. 128GB Intel Core X-series Processors (4-core) : 4 x DIMM

Max. 64GB

Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA® 3-Way SLI Technology Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

0

1

5

10

Intel® I219V - Anti-surge LANGuard - ROG GameFirst IV | Wi-Fi 802.11 a/b/g/n/ac

SupremeFX 8-Channel High Definition Audio CODEC S1220A

44-Lane CPU- Intel Core X-Series Processors Family 3 x PCIe 3.0/2.0 x16 (x16

x16/x16

x16/x16/x8) 2 x PCIe 3.0 x4 (max at x4 mode) 1 x PCIe 3.0/2.0 x1 28-Lane CPU- Intel Core X-Series Processors Family 3 x PCIe 3.0/2.0 x16 (x16

x16/x8

x16/x8/x1) 2 x PCIe 3.0 x4 (max at x4 mode) 1 x PCIe 3.0/2.0 x1 16-Lane CPU- Intel Core X-Series Processors Family 3 x PCIe 3.0/2.0 x16 (x16

x8/x8

x8/x8/x1) 2 x PCIe 3.0 x4 (max at x4 mode) 1 x PCIe 3.0/2.0 x11

1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)

ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x USB 3.1 Gen 2 front panel connector

1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 8 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper

OC Design - ASUS PRO Clock II Technology ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Xpert 4

and Turbo Core App AURA : Aura Lighting Control Aura RGB Strip Headers Aura Lighting Effects Synchronization with compatible ASUS ROG devices Aura Addressable Strip Header(s) ASUS Exclusive Features : USB BIOS Flashback AI Suite 3 Ai Charger Onboard Button : Power ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS EZ DIY : ASUS EZ Flash 3 ASUS USB BIOS Flashback ASUS UEFI BIOS EZ Mode Multi-language BIOS ASUS Q-Design : ASUS Q-Shield ASUS Q-Code ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector Gaming Aesthetics : 3D printing friendly AURA-RGB Lighting M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Supports Intel® Smart Response Technology

Intel Rapid Start Technology Intel® Optane™ Memory Ready Bluetooth : Bluetooth V4.2 دارای قابلیت RGB
