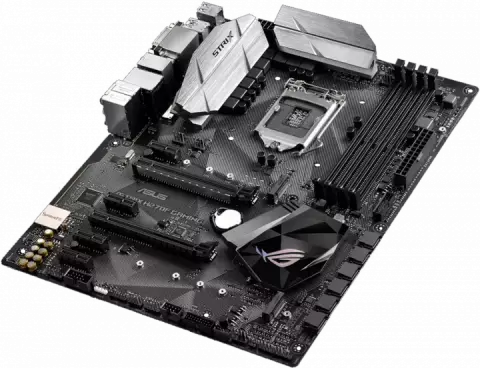

مادربرد Asus DDR4 مدل GAMING ROG STRIX H270F

LGA1151

Intel H270

7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

DDR4

2400/2133 MHz

Un-buffered Memory Dual Channel Memory Architecture

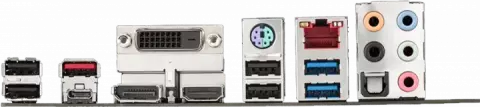

HDMI / DVI-D / DisplayPort 1.2 ports

Supports AMD 2-Way CrossFireX Technology

Intel® H270 Chipset : 1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Support Raid 0

1

5

10

Intel® I219V-Anti-surge LANGuard-ROG GameFirst Technology

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

1 x DVI-D

ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x AAFP connector 1 x RGB Header(s) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x ROG extension (ROG_EXT) header(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x T_Sensor Connector 3 x 3D Mount screw port(s)

Gamer's Guardian: ESD Guards on LAN

Audio

KBMS and USB3.1/3.0/2.0 ports DRAM Overcurrent Protection Stainless Steel Back I/O Highly Durable Components DIGI+ VRM SafeSlot ASUS Exclusive Features : AI Suite 3 Ai Charger ESD Guards ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS Q-Design : ASUS Q-Shield ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM Gaming Aesthetics : 3D printing friendly AURA-RGB Lighting Performance Optimization : DIGI + VRM GPU Boost Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control AI Suite 3 M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
