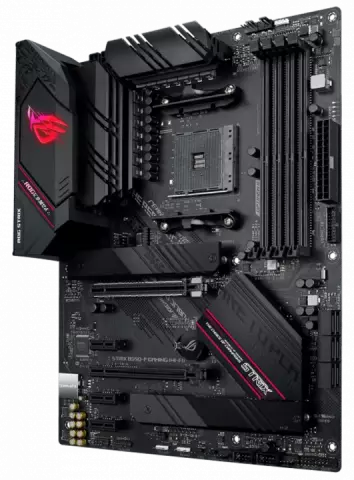

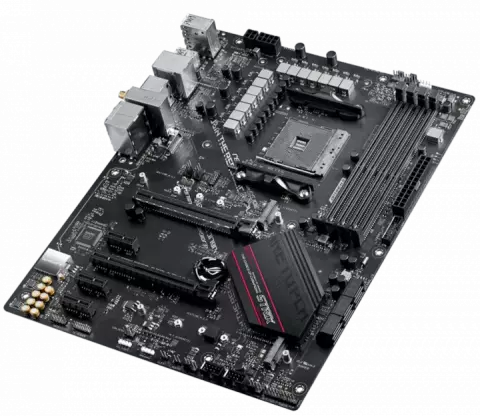

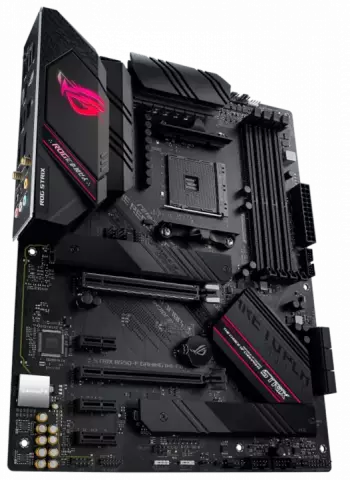

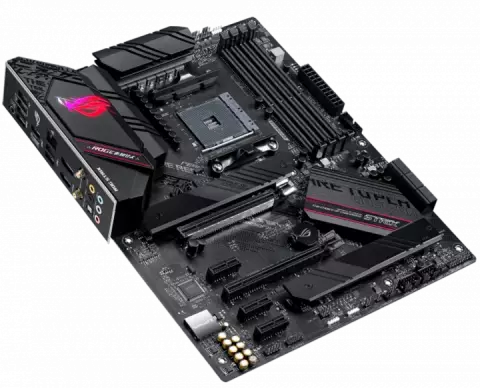

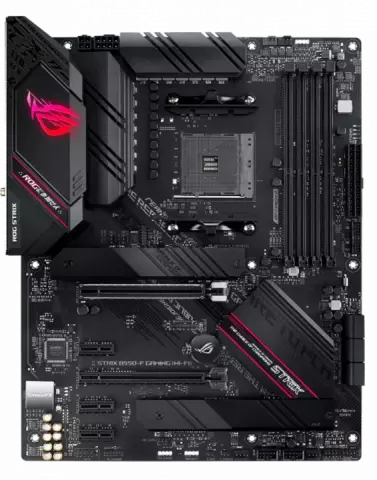

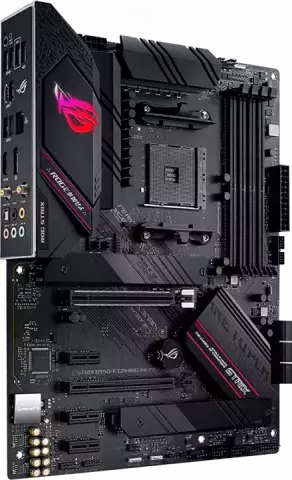

مادربرد ASUS مدل GAMING ROG STRIX B550-F (WIFI)

AM4

AMD B550

AMD AM4 Socket 3rd Gen AMD Ryzen Processors

DDR4

3rd Gen AMD Ryzen Processors : 4 x DIMM

Max. 128GB

DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz 3rd Gen AMD Ryzen with Radeon Graphics Processors : 4 x DIMM

Max. 128GB

DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz

دو کاناله

Un-buffered Memory

DisplayPort / HDMI

Supports AMD 2-Way CrossFireX Technology

3rd Gen AMD Ryzen Processors:

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset:

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)*

* When the M.2_2 Socket 3 is populated, SATA6G_5/6 ports will be disabled.

RAID 0/1/10

ROG SupremeFX High Definition Audio CODEC S1220A

7.1 کانال

Intel I225-V 2.5Gb Ethernet

Intel Wi-Fi 6 AX200

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

v5.1

1 × USB Type-C Gen2

1 × USB 3.2 Gen2

4 × USB 3.2 Gen1

2 × USB 2.0

ATX

1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x Thunderbolt header(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)
