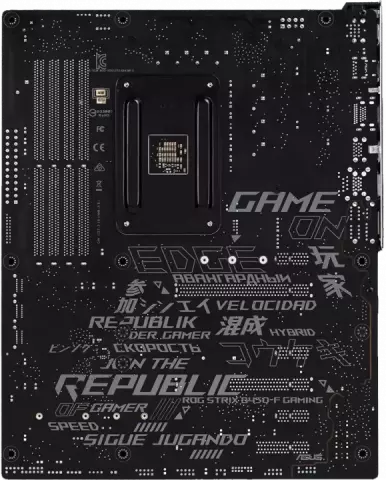

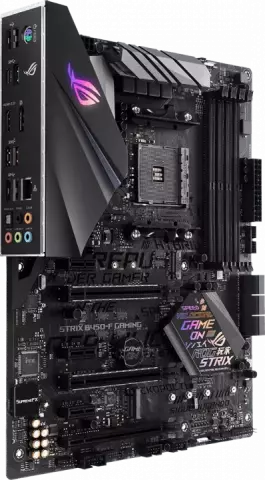

مادربرد Asus DDR4 مدل GAMING ROG STRIX B450-F

AM4

AMD B450

AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/Ryzen 1st Generation Processors

DDR4

3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

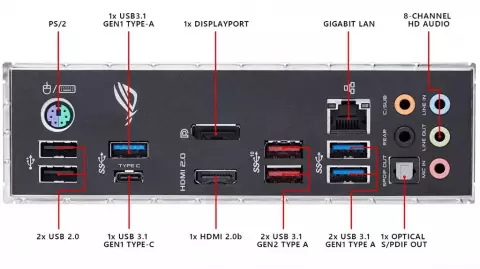

HDMI/DisplayPort ports

Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

Supports AMD 3-Way CrossFireX Technology

AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors : 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3

with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) AMD Ryzen with Radeon Vega Graphics Processor : 1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

Support Raid 0

1

10

Intel I211-AT

1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology

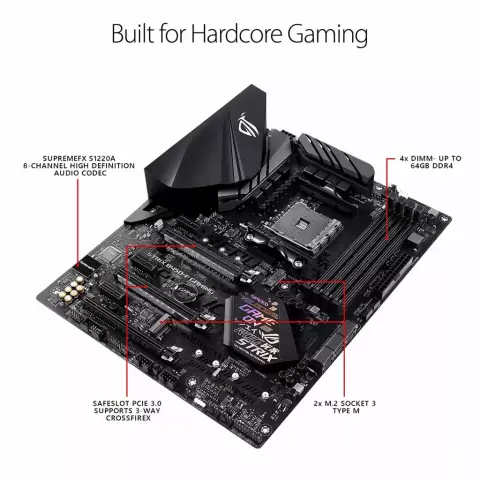

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors : 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4) AMD Ryzen with Radeon Vega Graphics Processor : 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset : 1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors : 2 x SATA 6Gb/s port(s) AMD Ryzen with Radeon Vega Graphics Processor : 2 x SATA 6Gb/s port(s) AMD B450 chipset : 4 x SATA 6Gb/s port(s)

ATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x Aura RGB Strip Headers 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)

5-Way Optimization by Dual Intelligent Processors 5 TPU Fan Xpert4 Gamer's Guardian ASUS EPU AURA ASUS Exclusive Features ASUS EZ DIY ASUS Q-Design Digi+VRM Turbo APP
