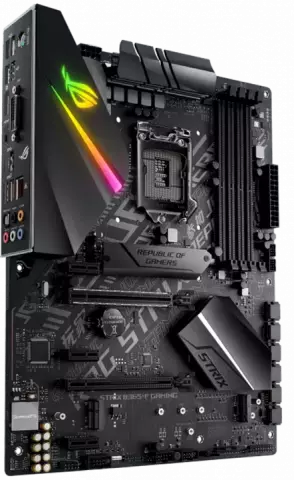

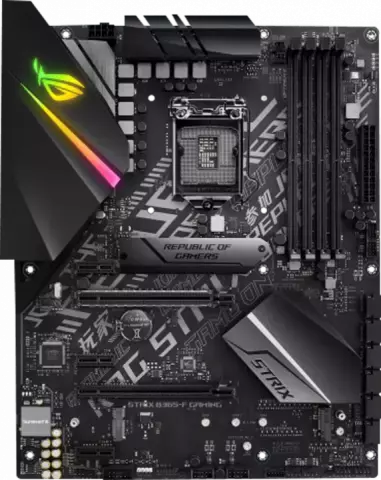

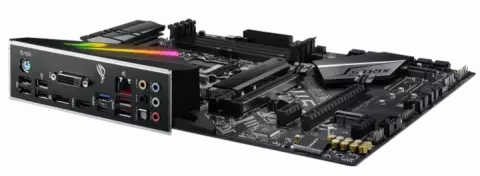

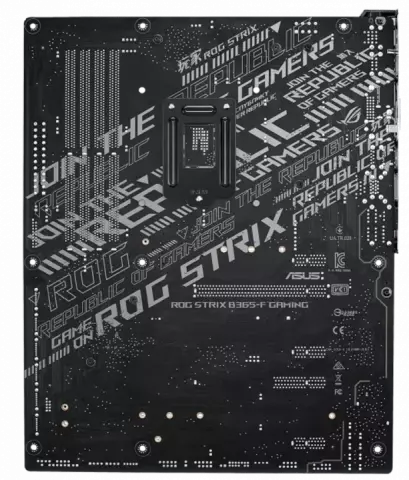

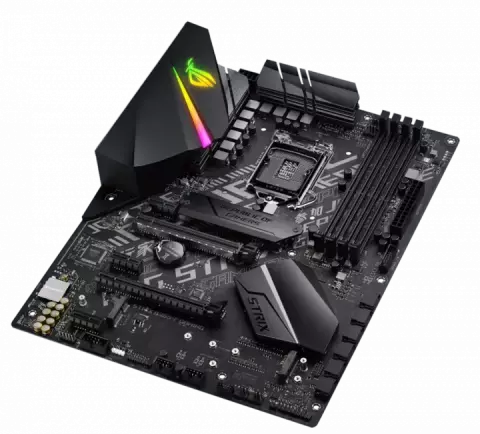

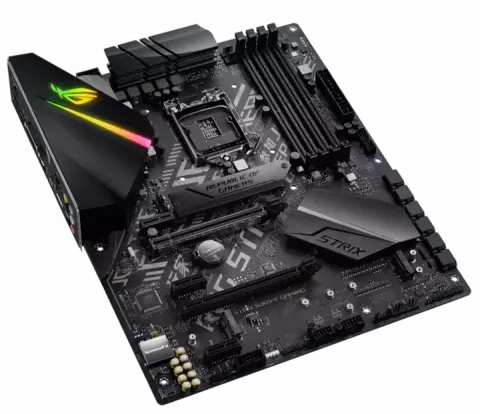

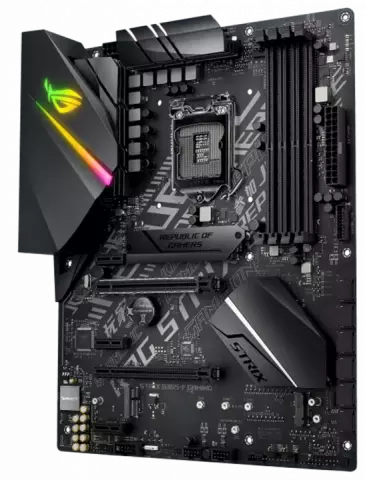

مادربرد ASUS مدل GAMING ROG STRIX B365-F

LGA1151 v2

Intel B365

Pentium Gold، Celeron ، سری هشتم Intel، سری نهم Intel

DDR4

2666/2400/2133 MHz

دو کاناله

HDMI/DVI/DisplayPort

رزولوشن HDMI : 4096x2160 با فرکانس 24 هرتز رزولوشن DVI : 1920x1200 با فرکانس 60 هرتز رزولوشن DisplayPort : 4096x2304 با فرکانس 60 هرتز

Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

RAID 0, 1, 5, 10

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

8 کانال

Intel I219V, 1 x Gigabit LAN Controller(s)

Anti-surge LANGuard

ROG GameFirst Technology

1x DVI-D

2 × USB 3.1 Gen2

1 × USB Type-C

1x USB 3.1 Gen 1

4 × USB 2.0

ATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x AAFP connector 1 x Aura RGB Strip Header(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header
