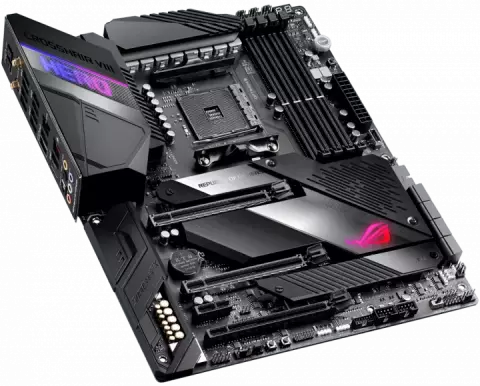

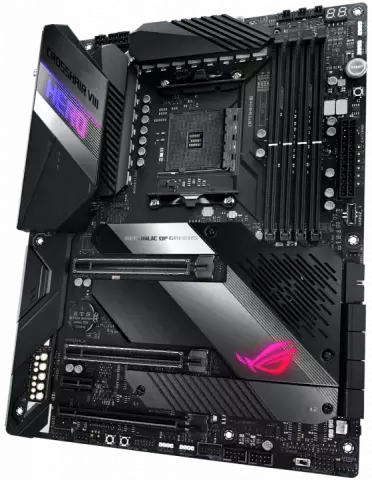

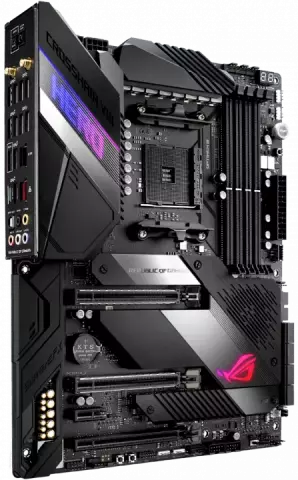

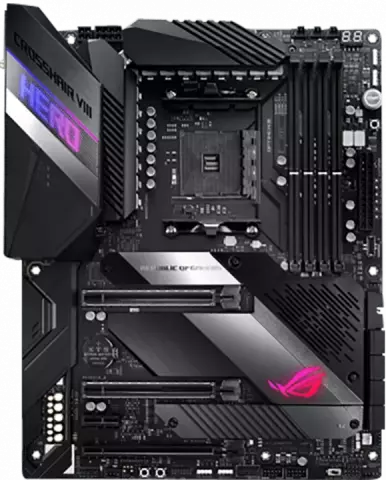

مادربرد ASUS مدل GAMING ROG CROSSHAIR VIII HERO (WI-FI)

AM4

AMD X570

AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

DDR4

3rd Gen AMD Ryzen Processors : 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 2nd Gen AMD Ryzen Processors : DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133

Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU

3rd and 2nd Gen AMD Ryzen Processors : Supports NVIDIA 2-Way SLI Technology

3rd and 2nd Gen AMD Ryzen Processors : Supports AMD 3-Way CrossFireX Technology 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : Supports AMD 2-Way CrossFireX Technology

3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3

with M Key

Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3

with M Key

Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

Raid 0

1

10

Intel I211-AT Realtek RTL8125-CG 2.5G LAN ASUS LAN Guard

ROG SupremeFX 8-Channel High Definition Audio CODEC

3rd Gen AMD Ryzen Processors : 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors : 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1

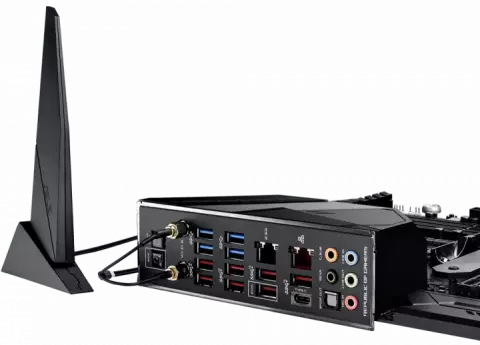

1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () 1 x Anti-surge 2.5G LAN (RJ45) port Anti-surge LAN (RJ45) port

ATX

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support 1 x M.2 Socket 3 with M key

type 2242/2260/2280/22110 storage devices support 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x Speaker connector

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : 5-Way Optimization tuning key perfectly consolidates TPU

EPU

DIGI+ VRM

Fan Expert 4

and Turbo App AURA : Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : USB BIOS FlashBack™ AI Suite 3 Ai Charger ASUS CrashFree BIOS 3 Armoury Crate ASUS NODE: hardware control interface ASUS EZ Flash 3 ASUS C.P.R.(CPU Parameter Recall) Clear CMOS Button Reset Button Start Button ReTry button ASUS Q-Design : ASUS Q-Code ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) ASUS Q-Slot ASUS Q-DIMM ASUS Q-Connector
