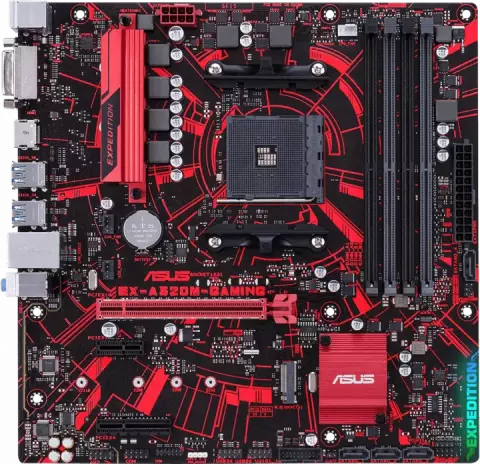

مادربرد Asus DDR4 مدل EX-A320M-GAMING

AM4

AMD A320

2nd/1st AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors Supports CPU up to 8 cores

DDR4

2400/2133 MHz

Un-buffered Memory ECC Memory (ECC mode) support varies by CPU

HDMI/DVI-D ports

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz Supports DVI-D with max. resolution1920 x 1200 @ 60 Hz

AMD Ryzen Processors : 1 x M.2 x4 Socket 3(SATA 6Gb/s & PCIe Gen3 x4 link)

AMD 7th Generation A-series/Athlon Processors : 1 x M.2 Socket 3

Realtek RTL8111H

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC

AMD A320 chipset 1 x PCIe 2.0 x4 (x2 mode)

1 x DVI-D

mATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x AAFP connector 1 x Aura RGB Strip Header(s) 1 x M.2 Socket 3 with M Key

type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x AIO PUMP Header

ASUS 5X Protection III : ASUS SafeSlot Core: Fortified PCIe Slot prevents damage ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges! ASUS Overvoltage Protection: Worldclass circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: 6 Phase digital power design Non-stop Durability : Anti-moisture coating - Outstanding protection against moisture and corrosion USBGuard- 120% higher voltage tolerance Non-stop Gaming : Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals Premium Japanese-made audio capacitors: Provide warm

natural and immersive sound with exceptional clarity and fidelity Unique de-pop circuit: Reduces startup popping noise to audio outputs Non-stop Challenger : ASUS iCafe Labs Certified - Top games and 100+ peripherals tested AURA : Aura Lighting Control Aura RGB Strip Headers Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Q-Design : ASUS Q-Slot ASUS Q-DIMM Digi+VRM
