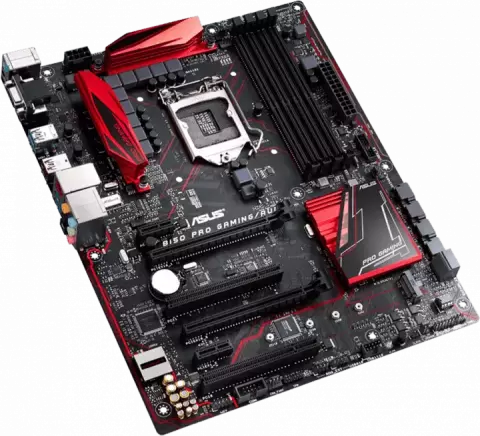

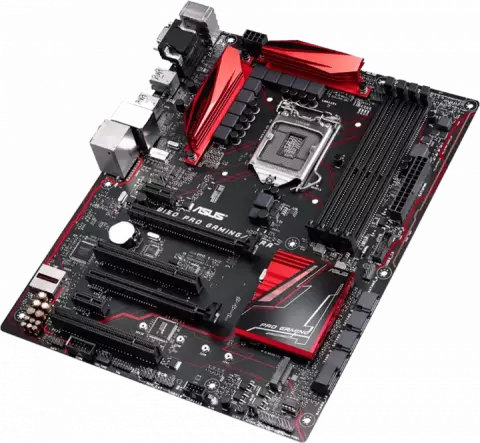

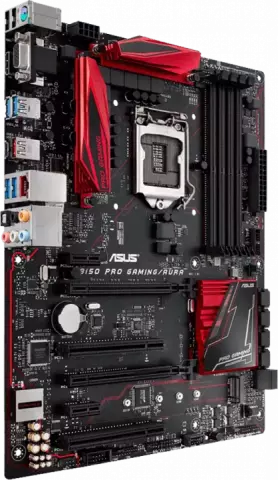

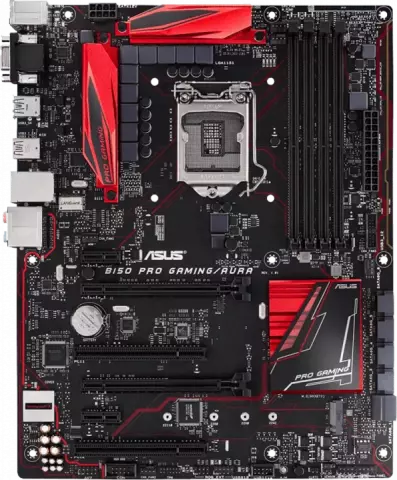

مادربرد Asus DDR4 مدل GAMING B150 PRO GAMING

LGA1151

Intel B150

Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

DDR4

DDR4 2133 MHz

Un-buffered Memory Dual Channel Memory Architecture

HDMI / RGB ports

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology

1 x M.2 Socke

Intel® I219V

1 x Gigabit LAN Controller(s)

SupremeFX 8-Channel High Definition Audio CODEC

ATX

ASMedia® USB 3.1 controller : 1 x USB 3.1 port(s) (Type-A) ASMedia® USB 3.1 controller : 1 x USB 3.1 port(s) (Type-C

Reversible) Intel® B150 chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel

blue

2 at mid-board) Intel® B150 chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel

4 at mid-board)

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key design

type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x Water Pump header (4-pin) 1 x ROG extension (ROG_EXT) header(s) 1 x 14-1 pin TPM connector

Gamer's Guardian: - ESD Guards on LAN

Audio

KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger+ - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Media Streamer RAMCache
