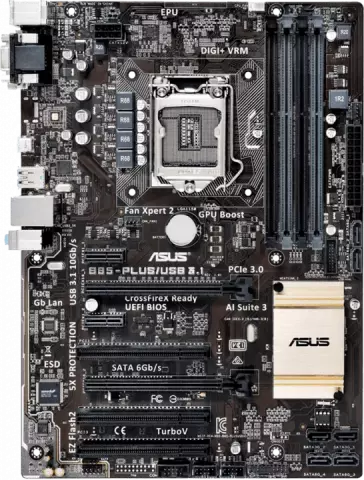

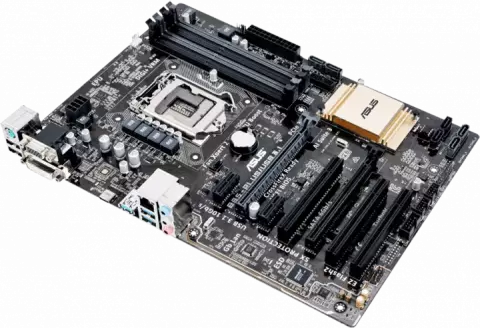

مادربرد Asus DDR3 مدل B85-PLUS/USB 3.1

LGA1150

AMD A88X

Intel® Socket 1150 for the New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

DDR3

DDR3 1600/1333/1066 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

DVI / RGB ports

Integrated Graphics Processor

Supports DVI with max. resolution 1920 x 1200 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD Quad-GPU CrossFireX™ Technology

Realtek® 8111GR

1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

1 x PCIe 2.0 x16 (x4 mode

black)

1

ATX

ASMedia® USB 3.1 controller : 1 x USB 3.1/3.0/2.0 port(s) (1 at back panel

teal blue

Type-A) ASMedia® USB 3.1 controller : 1 x USB 3.1 port(s) (1 at back panel

black

Type-C) Intel® B85 chipset : 4 x USB 3.0/2.0 port(s) (2 at back panel

blue) Intel® B85 chipset : 6 x USB 2.0 port(s) (2 at back panel

black)

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)

ASUS 5X Protection : - ASUS DIGI+ VRM - 4 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - USB 3.1 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 2 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Slot
