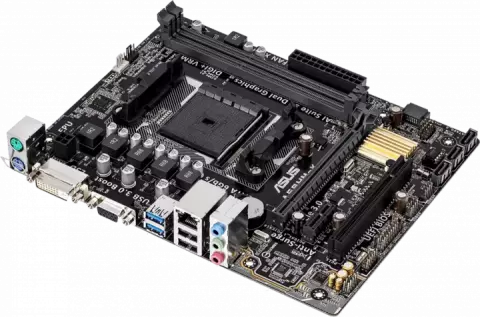

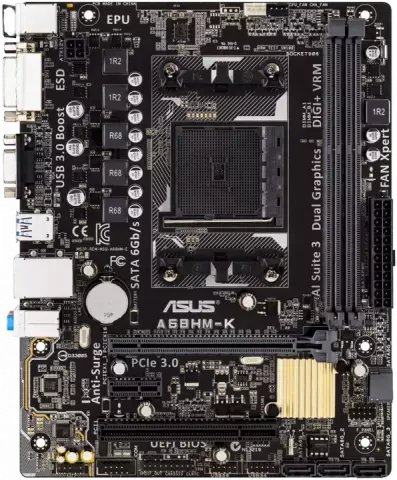

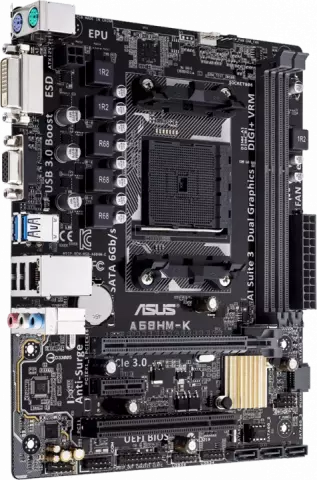

مادربرد Asus DDR3 مدل A68HM-K

FM2+

AMD A68H

AMD Socket FM2+ Athlon™/A- Series Processors Supports CPU up to 4 cores Supports AMD® Turbo Core 3.0 Technology

DDR3

2400(O.C.)/2133/1866*/1600/1333 MHz

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

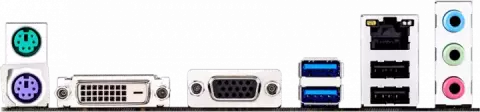

DVI / RGB ports

Supports DVI with max. resolution 2560 x 1600 @ 60 Hz Supports RGB with max. resolution 1920 x 1600 @ 60 Hz

Support Raid 0

1

10

JBOD

Realtek 8111GR

1 x Gigabit LAN Controller(s)

Realtek ALC887-VD

1

microATX

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x TPM connector(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s)

ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - Push Notice ASUS Q-Design : - ASUS Q-Slot
