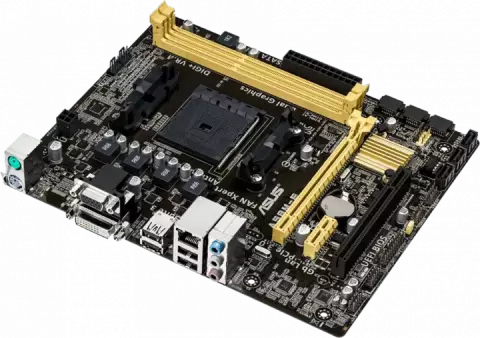

مادربرد Asus DDR3 مدل A58M-E

FM2+

AMD A58

AMD Socket FM2+ Athlon™/A- Series Processors Supports CPU up to 4 cores

DDR3

DDR3 2400(O.C.)/2133/1866/1600/1333 MHz

Support for non-ECC memory modules Dual channel memory architecture

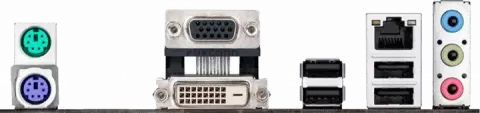

DVI / RGB ports

Integrated AMD Radeon™ R/HD8000/HD7000 Series Graphics in the A-Series APU

Supports DVI with max. resolution 2560 x 1600 @ 60 Hz Supports RGB with max. resolution 1920 x 1600 @ 60 Hz

Support Raid 0

1

10

JBOD

Realtek® 8111GR

1 x Gigabit LAN Controller(s)

Realtek® ALC887-VD

1

mATX

8 x USB 2.0/1.1 port(s) (4 at back panel

black

4 at mid-board)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s)

ASUS 5X Protection : - ASUS DIGI+ VRM - 3 + 1 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 ASUS Q-Design : - ASUS Q-Slot
