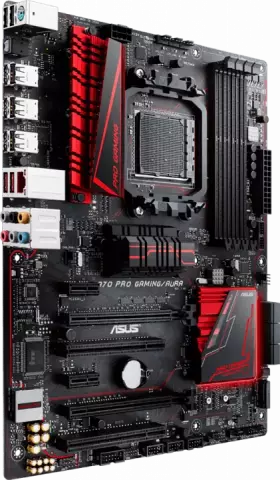

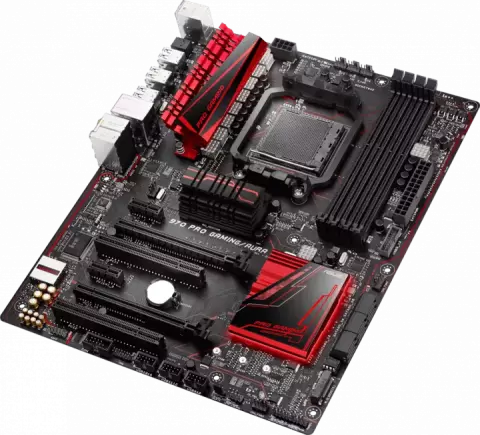

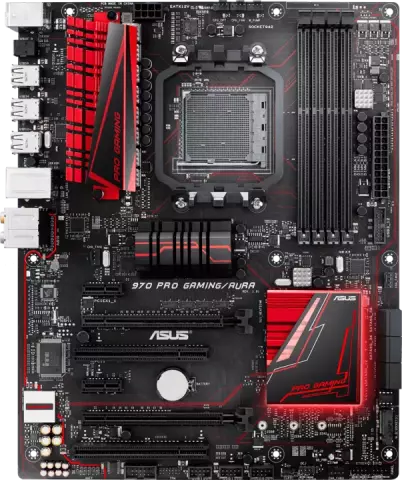

مادربرد Asus DDR3 مدل 970 PRO GAMING/AURA

AM3+

AMD 970/SB950

FX/PhenomII/AthlonII/Sempron 100 Series Processors

DDR3

2133(O.C.)/1866/1600/1333/1066

Non-ECC

Un-buffered Memory Dual Channel Memory Architecture

Supports NVIDIA Quad-GPU SLI Technology

Supports AMD Quad-GPU CrossFireX Technology

1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (PCIE 2.0 x4)

0

1

5

10

Intel I211-AT

1 x Gigabit LAN Controller(s)

GameFirst technology / Anti-surge LANGuard

SupremeFX 8-Channel High Definition Audio CODEC

2 x PCIe 2.0 x16 (x16 or dual x8)

ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

1 x ReTry jumper 1 x Safe Boot jumper 1 x M.2 Socket 3 for M Key

type 2242/2260/2280 devices 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Water Pump header (4-pin) 1 x Slow Mode jumper(s)

Gamer's Guardian: - ESD Guards on LAN

Audio

KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - DIGI+ VRM ASUS Exclusive Features : - AI Suite 3 - Ai Charger+ - USB 3.1 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - ASUS Fan Xpert 2 ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU

DRAM

VGA

Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Media Streamer RAMCache AURA: RGB Lighting Control
